PVC-U Profile Overview
Schüco LivIng sets new standards in terms of comfort, security, energy efficiency and design. With a basic depth of 82 mm and thermal insulation values to passive house level, it has all the features that are necessary for pioneering energy-saving windows. New sealing technology offers effective protection against draughts, moisture and noise – throughout the lifetime of the window. “Made in Germany” quality and burglar resistance to resistance class RC 2.
- 1. Custom IGU options for glazing, spacers, and gas filled cavities
- 2. Sleek sash design with clean, timeless lines—compliments the demands of modern architecture
- 3. Offers 2-3 sealing levels for dependable thermal and sound insulation
- 4. The slim profile widths maximize natural light and enhance solar energy gains while offering clear sightlines

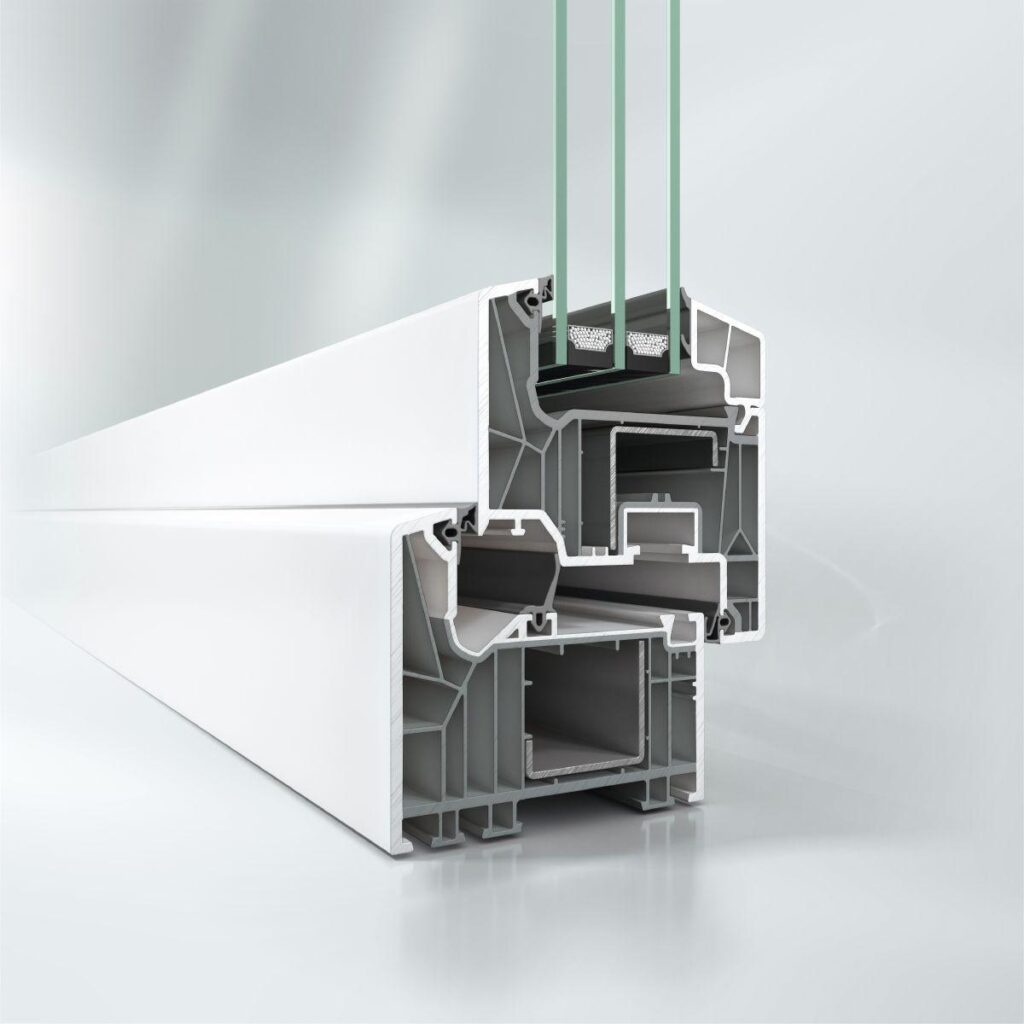

- 5. 7-chamber profile system offers excellent insulating properties, achieving u-values as low as 0.96 W/(m²·K)
*The key difference between American PVC and European uPVC windows lies in their design and performance. European uPVC (unplasticized polyvinyl chloride) is more rigid, durable, and engineered for superior thermal and sound insulation, aligning with high-performance standards, while American PVC tends to be bulkier and less energy-efficient.
Sustainability
- • 360° Sustainability – From Concept to Recycling: At Future Vision, sustainability is at the core of everything we do. We exclusively offer high-quality, resource-efficient, and energy-saving products that set industry benchmarks, empowering you and your clients to deliver reliable, lasting value while prioritizing environmental responsibility
- • In partnership with Rewindo, we are dedicated to ensuring that windows and doors are responsibly recycled at the end of their lifecycle. Our mission is to reintegrate raw materials into the production process without compromising their quality
- • PVC-U systems are designed to lower CO₂ emissions by enhancing energy efficiency, helping to preserve natural resources. All PVC-U systems are fully recyclable, reflecting our unwavering commitment to sustainability and our responsibility toward climate and environmental protection
Technical information
| Uf value of frame (≥) | 0.96 W/(m²·K) | Ug value of glass (≤) | 0.5 W/(m²·K) |
| Max. vent width | 1500 mm | Max. vent height | 2600 mm |
| Min. face width | 120 mm | Max. sound reduction | 47 dB |
| Air permeability | Class 4 | Watertightness | Class 9A |
| Burglar resistance | Up to RC2 | Wind load resistance | Class C5 / B5 |
| Barrier-free (≤) 20 mm | Yes | Concealed fittings system | Yes |
| Surface finishes | TopAlu, Decorative foils | Glass composition | Triple glazing/ Double glazing |
| Opening angle | 180 ° | TipTronic | No |
Your Style, Your Finish – Shüco Unlimited Finish

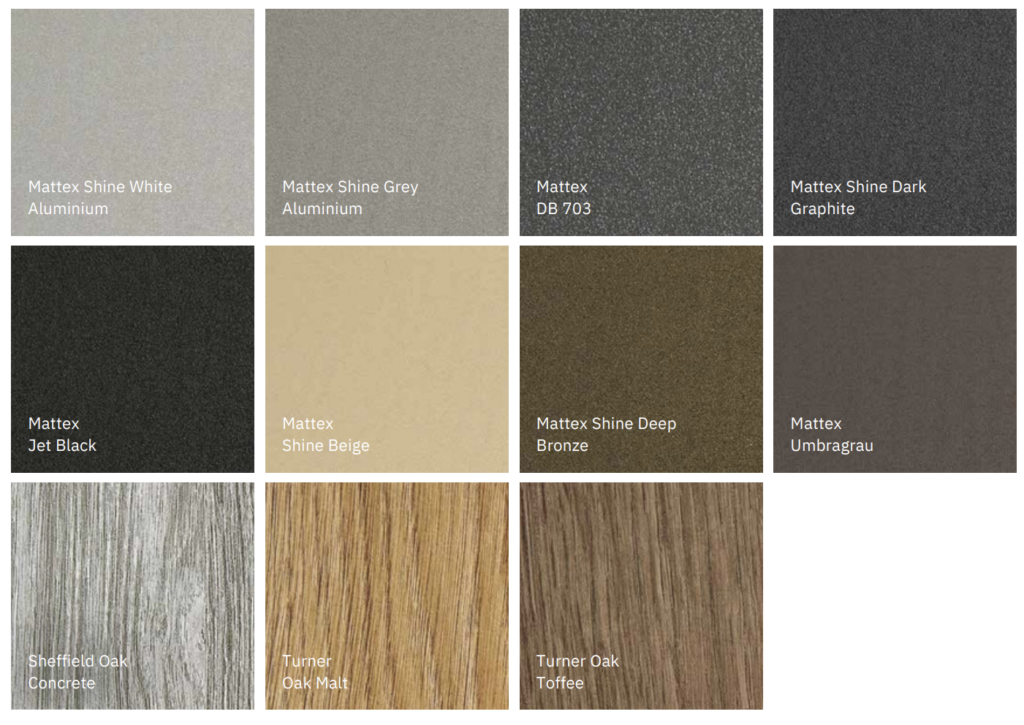

Schüco decorative foils with Colour and wood-effect:
The decision to choose PVC-U windows with decorative foils is clear: exceptional thermal insulation, superior durability, and excellent value for money. A comprehensive range of monochrome colors and timber finishes ensures every individual requirement can be met.
Schüco decorative foils, applied on one or both sides, allow for a coordinated design that achieves a consistent appearance across the entire system—inside and out. These colors maintain the same look even when the window is open, ensuring a harmonious aesthetic.
Fine-textured or smooth decorative foils add design highlights, enabling a balanced and cohesive look for any home or façade.
